Features
- Outstanding acoustic performance
- High sound absorption
- Water & chemical resistant
- Will last the life of any floor material
- Easy to install
- Zero VOC’s, no emissions, non toxic
- Nominal 4mm thickness
- Australian designed & manufactured
Properties
- Compressive strength at 10% deformation (EN 826) = 1.68 kPa
- Dynamic stiffness (ISO 9052-1) = 52.94 MN/m³
- Compressibility (EN 12431) = 0.1mm @ 50 kPa
AS ISO 9705-2003
- classification Group 1 ; (SMORGArc) <100m2/s2; as required by BCA C1.10; tested 16/05/2012 BRANZ FI 4871
- ISO 9705 1993
- classification Group 1-S; smoke production rate
VOC emissions tested by Cetec Pty Limited (CV080408) for chemical emission & is classified as low VOC.
VOC Concentration 0.01mg/m3
Acoustic Tapping Test
Acoustica’s product range of noise control solutions for flooring systems has been repeatedly independently tested to consistently achieve five and six stars in the Association of Australian Acoustic Consultants (AAAC) star rating system. However, results will vary depending on the construction, substrate and surface materials of each project.
Acoustica can refer you to a reputable acoustic consultant to conduct site specific testing* who will provide certification for each project site, prepared in accordance with the International Standard ISO 16283-1:2014 Acoustics — Field measurement of sound insulation in buildings and of building elements — Part 1: Airborne sound insulation (refer ISO 140-7:1998).
There is a charge for this service*.
Technical
The BCA provides minimum construction standards for various building classes including acoustic privacy.
The BCA requirement is a weighted standardised impact sound pressure level with spectrum adaptation term Ci, of less than or equal to 62 Lnt,w+Ci.
However, the reality is that this is in most cases unacceptable to occupants and can result in the need for costly reparation works.
In response the Association of Australian Acoustic Consultants (AAAC) has developed the star rating system to rank the acoustical quality of apartments and provide guidance in the design and construction process.
Applications
The unrivalled performance of AngelStep® 630 is due to its unique polymer construction. No degradation of acoustic properties due to structural collapse under the weight of heavy furniture, castors and appliances. For use with thin vinyl or vinyl that does not interlock or clip together.
Impact Isolation of floors (Lnt’w) AAAC Description
|
6 star |
40 |
Just audible or not audible |
|
5 star |
45 |
Just audible |
|
4 star |
50 |
Audible |
|
3 star |
55 |
Clearly audible |
|
2 star |
65 |
Clearly audible |
|
BCA |
62 |
Clearly audible |

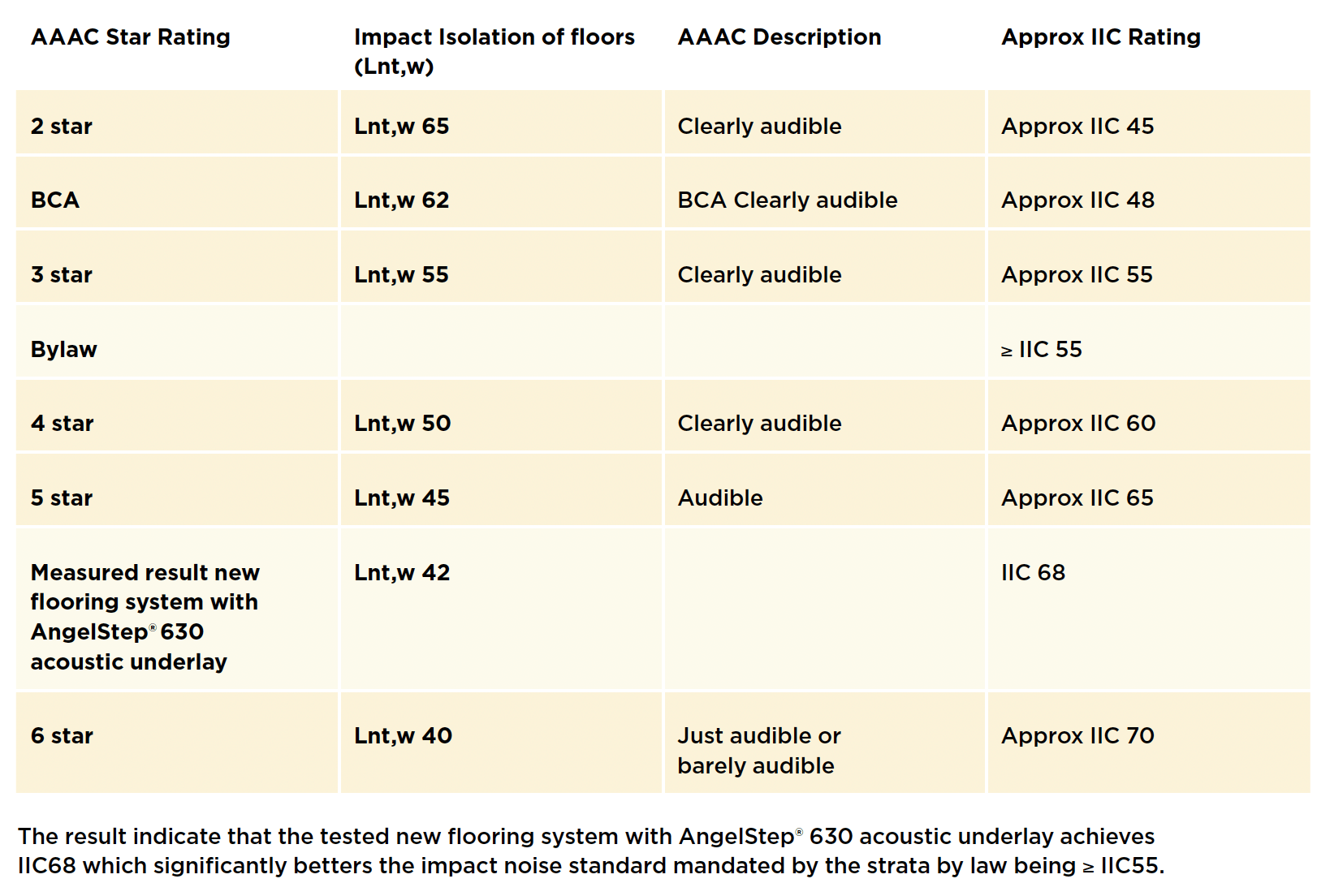

Floor Impact Testing
Building Mandated By-law: Impact Insulation Class (IIC) 55 or less or 3 star in the AAAC (Association of Australian Acoustical Consultants) star rating guide.
Installation of a timber floor over AngelStep® 630 over a concrete slab. Result: Impact Insulation Class IIC 68
Francis St, Darlinghurst – Vipac, Ref: 20E-16-0230
Strata bylaw: IIC 55.
Result; AngelStep® 630 + laminated timber: IIC 68.
